sgp4.hpp File Reference

TLE parsing and SGP4 propagator C++ wrappers. More...

#include "ffi_core.hpp"
#include <cstdint>
#include <ostream>
#include <string_view>
#include <utility>

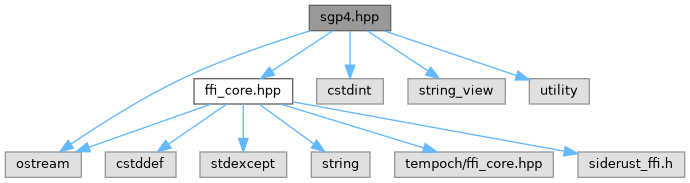

Include dependency graph for sgp4.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	siderust::tle::Tle
	Move-only RAII wrapper around a parsed Two-Line Element set. More...
struct	siderust::sgp4::State
	Propagated TEME state vector. More...
class	siderust::sgp4::Propagator
	Move-only RAII wrapper around an initialised SGP4 propagator. More...

Namespaces
namespace	siderust
namespace	siderust::tle
namespace	siderust::sgp4

Enumerations
enum class	siderust::sgp4::GravityModel : int { siderust::sgp4::Wgs72 = 0 , siderust::sgp4::Wgs72Iau = 1 , siderust::sgp4::Wgs84 = 2 }
	Gravity model selector. More...

Functions
std::ostream &	siderust::sgp4::operator<< (std::ostream &os, const State &s)

Detailed Description

TLE parsing and SGP4 propagator C++ wrappers.

RAII wrappers around the siderust_tle_* and siderust_sgp4_* FFI functions.

Typical usage

#include <siderust/sgp4.hpp>

auto tle = siderust::tle::Tle::parse(line1, line2);
auto prop = siderust::sgp4::Propagator(tle);
double epoch_jd = prop.epoch_jd_utc();
auto state = prop.propagate_at(epoch_jd + 360.0 / 1440.0);
// state.pos_km[3]  — TEME position, km
// state.vel_kms[3] — TEME velocity, km/s

Definition in file sgp4.hpp.
