lambert.hpp File Reference

Lambert solver C++ wrapper. More...

#include "ffi_core.hpp"
#include <array>
#include <cstdint>
#include <ostream>

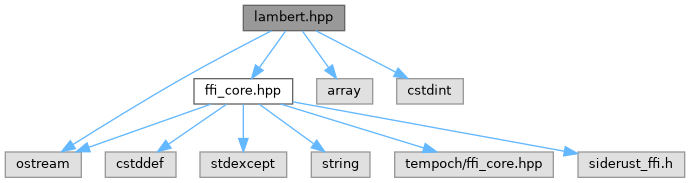

Include dependency graph for lambert.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	siderust::lambert::Diagnostics
	Householder-iteration diagnostics accompanying a Lambert solution. More...
struct	siderust::lambert::Solution
	Complete solution to a Lambert boundary-value problem. More...

Namespaces
namespace	siderust
namespace	siderust::lambert
namespace	siderust::lambert::detail

Enumerations
enum class	siderust::lambert::Branch : int { siderust::lambert::Prograde = 0 , siderust::lambert::Retrograde = 1 }
	Branch selector for the Lambert solver. More...

Functions
Solution	siderust::lambert::detail::solve_impl (const double *r1_km, const double *r2_km, double tof_s, double mu_km3_s2, Branch branch)
Solution	siderust::lambert::solve (const double(&r1_km)[3], const double(&r2_km)[3], double tof_s, double mu_km3_s2, Branch branch=Branch::Prograde)
	Solve Lambert's single-revolution two-point boundary-value problem.
Solution	siderust::lambert::solve (const std::array< double, 3 > &r1_km, const std::array< double, 3 > &r2_km, double tof_s, double mu_km3_s2, Branch branch=Branch::Prograde)
	Overload accepting std::array<double,3> positions.
std::ostream &	siderust::lambert::operator<< (std::ostream &os, const Solution &sol)
	Stream a Lambert solution (velocities in km/s).

Detailed Description

Lambert solver C++ wrapper.

Wraps siderust_lambert_solve (Izzo's algorithm) with a value-semantic C++17 interface. All inputs/outputs use plain double arrays — no heavy unit types cross the FFI; callers can wrap results in qtty types as desired.

Typical usage

#include <siderust/lambert.hpp>

double r1[3] = { 1.496e8, 0.0, 0.0 };   // Earth position, km
double r2[3] = { 1.978e8, 1.142e8, 0.0 }; // Mars position, km
auto sol = siderust::lambert::solve(r1, r2, 258.0 * 86400.0, 1.327e11);
// sol.v1_kms  — departure velocity in km/s
// sol.v2_kms  — arrival velocity in km/s

Definition in file lambert.hpp.
